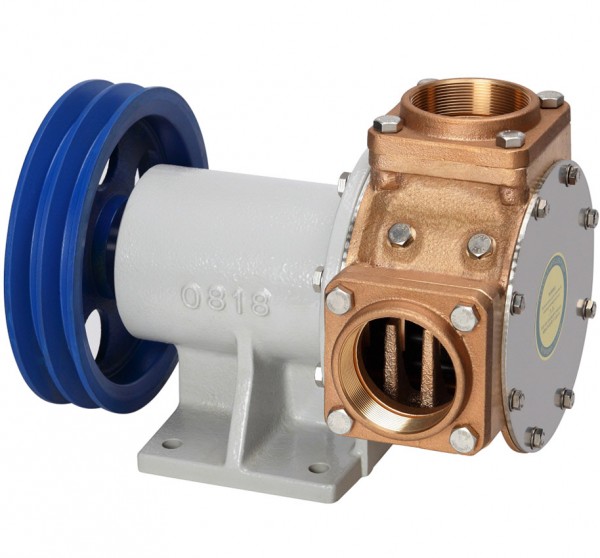

DJ-L0818
페이지 정보
본문
COMMENT
- It doesn't need hood valve because of the strong self-sucking in rotation.
- Simplicity to install and operate because of the unnecessariness of defleting the air and filling out the water.
- Easiness to change the parts. Impeller can easily be changed by the unting the front cover.
- Possibility of lashing and backlashing
- Multi-functional pump which can carry the high viscosity of fluid, solid body , and sludge/slurry
- Selective installation of the rubber impellers between CR rubber which has strong durability and intensity and NBR rubber which has strong anti-oil nature.
The usage of the flexible pump : For ship, seawater, manufacturing industry, food, husbandry, brewing and chemical medicine
DETAIL INFO
Body / Housing | FCD / Bronze | Ports | 3" (80mm) |
Driven Type | Pulley | Impeller No. | 09-43-1201 |
Driven Shaft | 35mm | Seal | Mechanical Seal (DJ-MS040) |
Shaft | Stainless Steel | Weight | 40 Kg |
첨부파일
-
DJ-0818 Drawing0.pdf (243.6K)
24회 다운로드 | DATE : 2021-02-02 17:54:27
