IMPELLER SPECIFICATIONS

A Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
081-0601 6 40mm (1.57") 40mm (1.57") 10mm (0.39") Neoprene
08-41-0601 6 40mm (1.57") 19mm (0.74") 9.5mm (0.37") Neoprene
08-31-0601 6 40mm (1.57") 19mm (0.74") 12mm (0.47") Neoprene
09-107-0601 6 40mm (1.57") 19mm (0.74") 12mm (0.47") Neoprene

B Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
08-37-0601 6 51mm (2") 22mm (0.86") 12.7mm (0.5") Neoprene
08-39-0601 6 51mm (2") 22mm (0.86") 12mm (0.47") Neoprene
08-31-0601 6 51mm (2") 22mm (0.86") 12.7mm (0.5") Neoprene

C Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
008-1001 10 57.1mm (2.24") 50mm (1.96") 16mm (0.62") Neoprene

D Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
08-21-1201 12 57mm (2.24") 31.5mm (1.24") 16mm (0.62") Neoprene
08-22-1201 12 57mm (2.24") 31.5mm (1.24") 16mm (0.62") Neoprene
08-32-1201 12 57mm (2.24") 20mm (0.78") 12.7mm (0.5") Neoprene
09-105-1201 12 57.1mm (2.24") 48.1mm (1.89") 16mm (0.62") Neoprene

E Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
08-38-1201 12 62mm (2.44") 32mm (1.25") 16mm (0.62") Neoprene
09-106-1201 12 62mm (2.44") 22mm (0.86") 16mm (0.62") Neoprene

F Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
08-20-1201 12 65mm (2.55") 41mm (1.61") 16mm (0.62") Neoprene
08-36-1201 12 65mm (2.55") 51mm (2") 16mm (0.62") Neoprene
09-44-1201 12 65mm (2.55") 80mm (3.14") 25mm (0.98") Neoprene

G Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
001-0801 8 65mm (2.55") 50mm (1.96") 16mm (0.62") Neoprene
001-0801N 8 65mm (2.55") 50mm (1.96") 16mm (0.62") Nitrile
08-40-0801 8 65mm (2.55") 37mm (1.45") 16mm (0.62") Neoprene
09-46-0801 8 65mm (2.55") 51mm (2") 16mm (0.62") Neoprene

H Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
09-42-1001 10 65mm (2.55") 68mm (2.67") 16mm (0.62") Neoprene
09-201-1001 10 65mm (2.55") 51mm (2") 19mm (0.74") Neoprene
007-1001 10 65mm (2.55") 51mm (2") 16mm (0.62") Neoprene

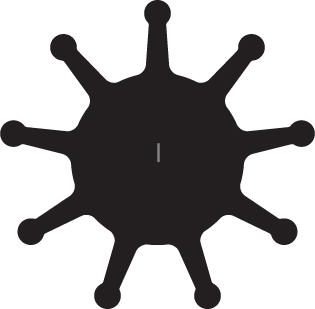

I Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
005-0901 9 79mm (3.11") 54mm (2.12") 20mm (0.78") Neoprene
006-0901 9 80mm (3.14") 75mm (2.95") 20mm (0.78") Neoprene

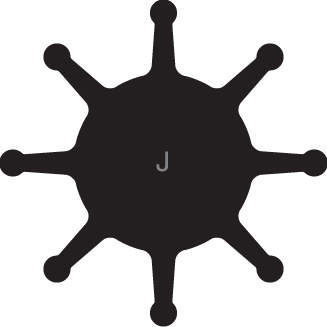

J Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
002-0801 8 80mm (3.14") 53mm (2.08") 20mm (0.78") Neoprene
082-0801 8 80mm (3.14") 54mm (2.12") 19mm (0.74") Neoprene

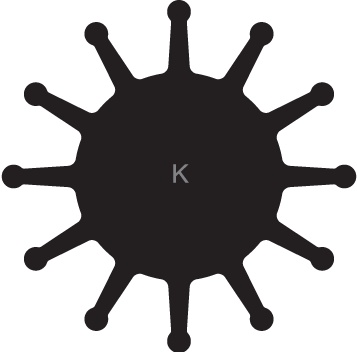

K Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
08-19-1201 12 82mm (3.22") 73mm (2.87") 20mm (0.78") Neoprene
08-35-1201 12 82mm (3.22") 73mm (2.87") 19mm (0.74") Neoprene

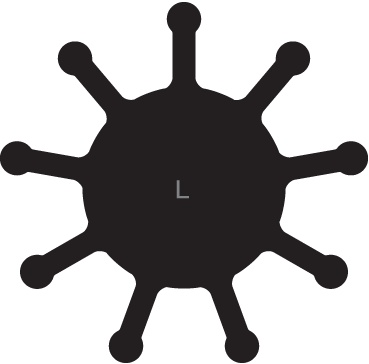

L Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
09-41-0901 9 92mm (3.62") 43mm (1.69") 25mm (0.98") Neoprene

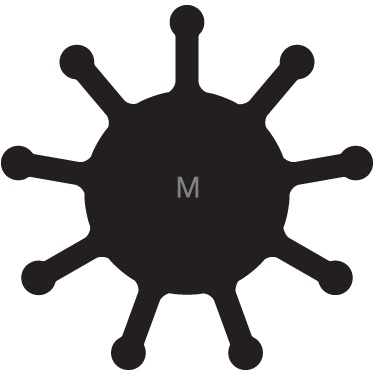

M Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
003-0901 9 95mm (3.74") 63mm (2.48") 25mm (0.98") Neoprene
083-0901 9 95mm (3.74") 63mm (2.48") 25mm (0.98") Neoprene
086-0901 9 95mm (3.74") 88.5mm (3.48") 25mm (0.98") Neoprene
088-0901 9 95mm (3.74") 88.5mm (3.48") 25mm (0.98") Neoprene
089-0901 9 95mm (3.74") 88.5mm (3.48") 25mm (0.98") Neoprene
08-12-0901 9 95mm (3.74") 63mm (2.48") 25mm (0.98") Neoprene
090-0901 9 95mm (3.74") 95mm (3.74") 25mm (0.98") Neoprene

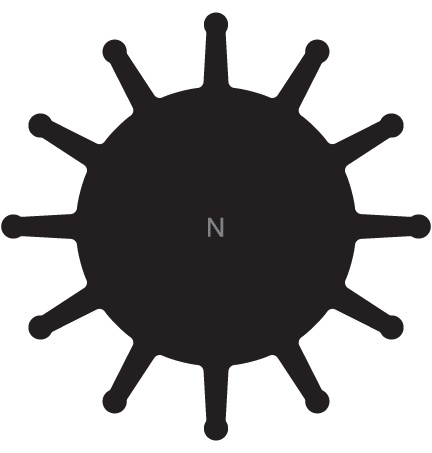

N Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
003-1201 12 95mm (3.74") 63mm (2.48") 25mm (0.98") Neoprene
086-1201 12 95mm (3.74") 88.5mm (3.48") 25mm (0.98") Neoprene
087-1201 12 95mm (3.74") 63mm (2.48") 25mm (0.98") Neoprene
088-1201 12 95mm (3.74") 88.5mm (3.48") 25mm (0.98") Neoprene
08-30-1201 12 95mm (3.74") 130mm (5.11") 25mm (0.98") Neoprene
08-33-1201 12 95mm (3.74") 102mm (4.01") 25mm (0.98") Neoprene
08-34-1201 12 95mm (3.74") 80mm (3.14") 25mm (0.98") Neoprene
09-45-1201 12 95mm (3.74") 95mm (3.74") 25mm (0.98") Neoprene

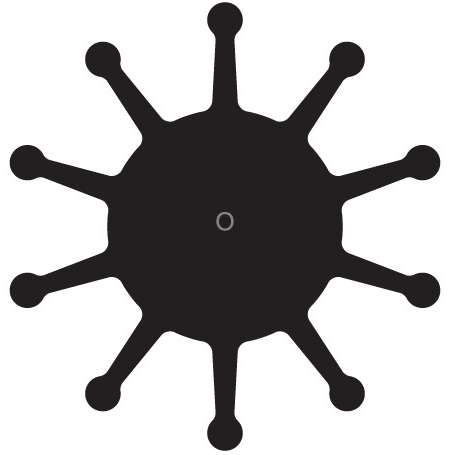

O Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
003-1001 10 95mm (3.74") 63mm (2.48") 25mm (0.98") Neoprene

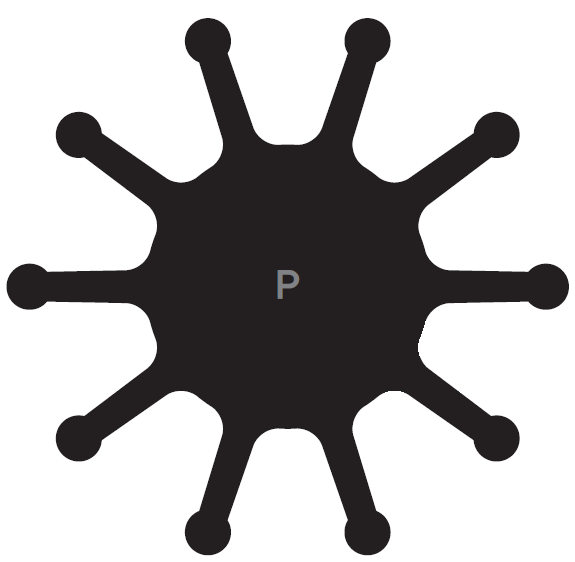

P Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
09-48-1001 10 103mm (4.05”) 100mm (3.98”) 25mm (0.98") Neoprene

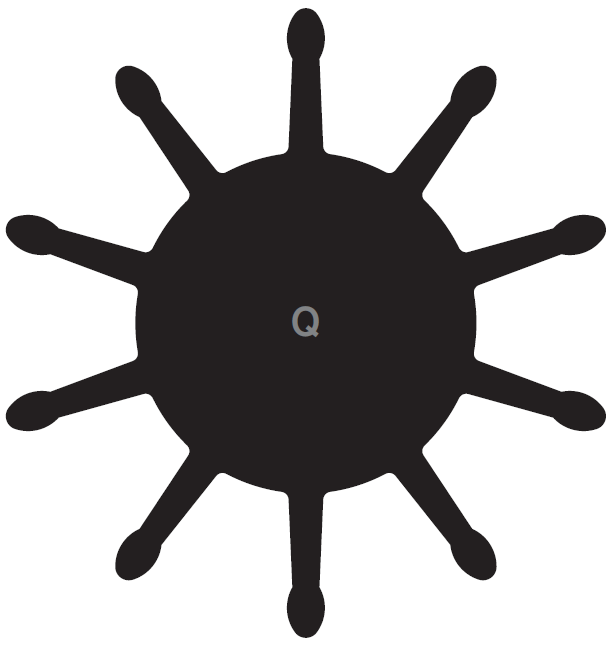

Q Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
08-14-1001 10 115mm (4.52") 104mm (4.09") 25mm (0.98") Neoprene
09-49-1001
(45˚ Spline)		 10 115mm (4.52") 110mm (4.33") 25mm (0.98") Neoprene
09-49-1001T
(30˚ Spline)		 10 115mm (4.52") 110mm (4.33") 25mm (0.98") Neoprene

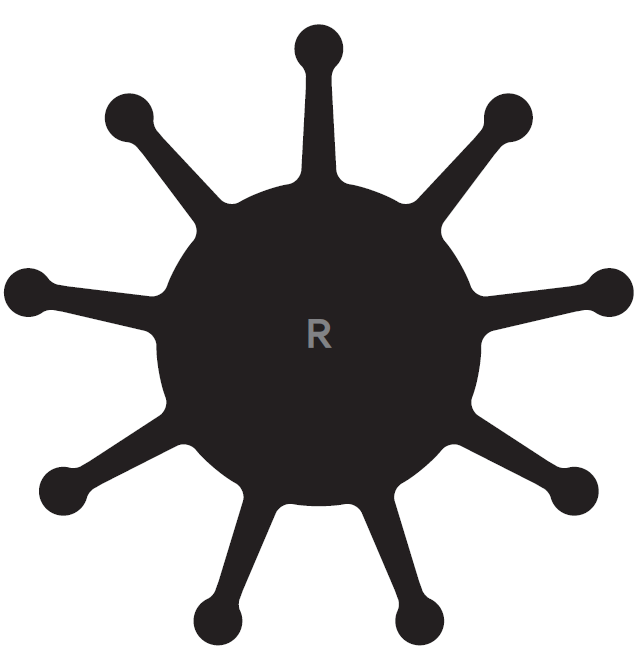

R Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
08-15-0901 9 118mm (4.64") 88.9mm (3.5") 25mm (0.98") Neoprene
08-16-0901 9 118mm (4.64") 88.9mm (3.5") 25mm (0.98") Neoprene

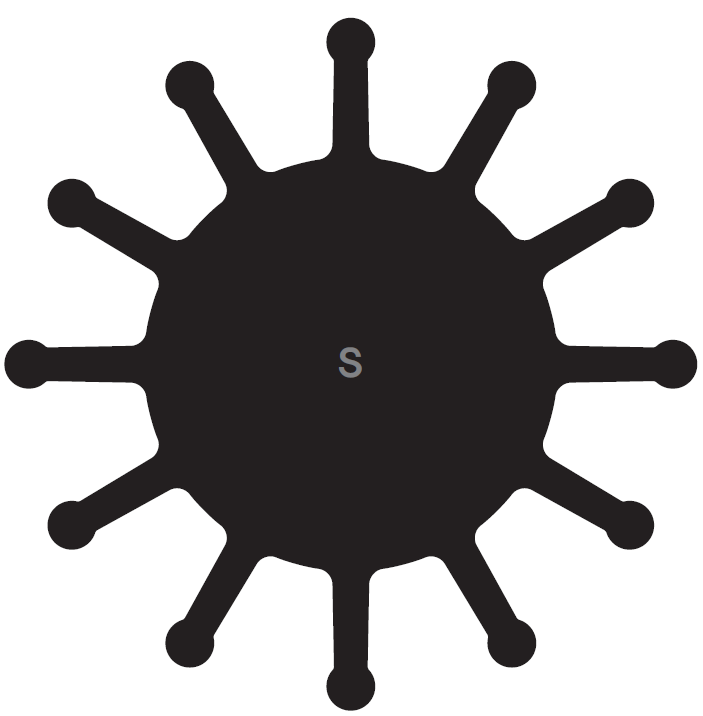

S Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
08-17-1201 12 129mm (5.07") 101.5mm (3.99") 36mm (1.41") Neoprene
08-17-1201N 12 129mm (5.07") 101.5mm (3.99") 36mm (1.41") Nitrile

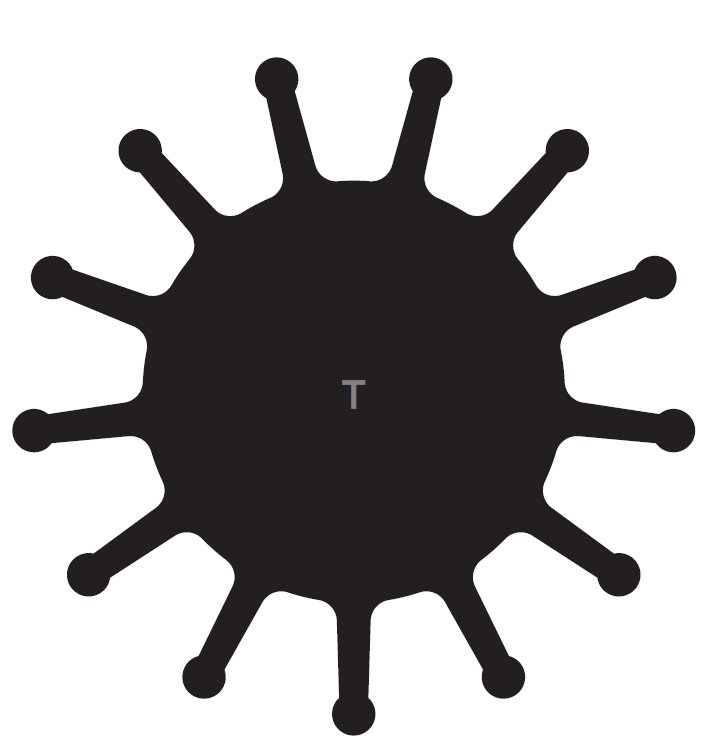

T Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
08-18-1301 13 129mm (5.07") 127mm (5") 36mm (1.41") Neoprene
09-17-1301 13 129mm (5.07") 101.5mm (3.99") 36mm (1.41") Neoprene

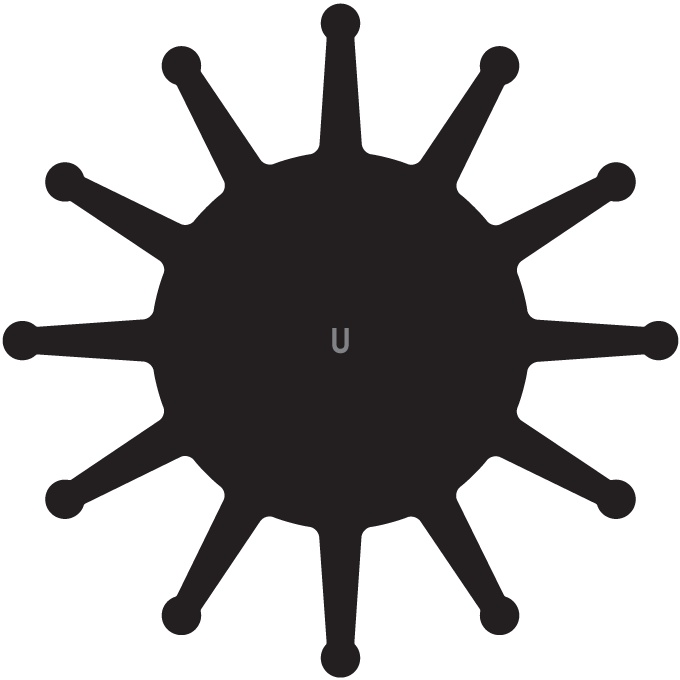

U Impeller

DJ PUMP Blade No. A Diameter B Depth C Shaft Diameter Material Driven Type
09-43-1201 12 161mm (6.33") 120mm (4.72") 36mm (1.41") Neoprene
