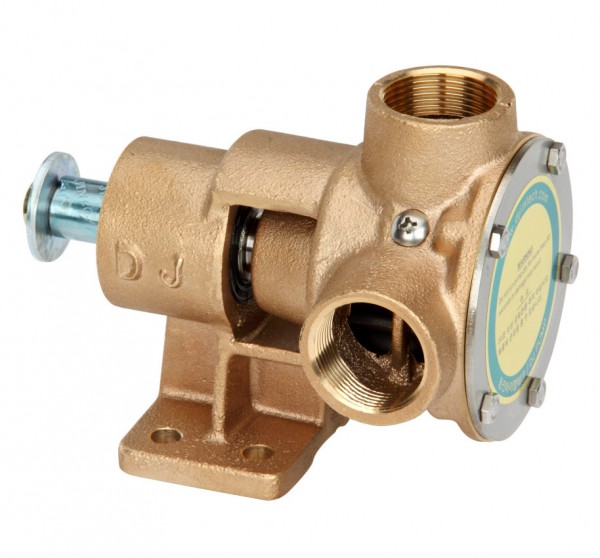

DJ-L082
페이지 정보
![profile_image](http://djimtech.com/dj/img/no_profile.gif)
본문
COMMENT
- It doesn't need hood valve because of the strong self-sucking in rotation.
- Simplicity to install and operate because of the unnecessariness of defleting the air and filling out the water.
- Easiness to change the parts. Impeller can easily be changed by the unting the front cover.
- Possibility of lashing and backlashing
- Multi-functional pump which can carry the high viscosity of fluid, solid body , and sludge/slurry
- Selective installation of the rubber impellers between CR rubber which has strong durability and intensity and NBR rubber which has strong anti-oil nature.
The usage of the flexible pump : For ship, seawater, manufacturing industry, food, husbandry, brewing and chemical medicine
DETAIL INFO
Body | Bronze | Ports | 1-1/4” (32mm) PIPE |
Driven Type | Pulley | Impeller No. | 082-0801 Neoprene (Seawater) & 082-0801 Nitrile (Oil) |
Driven Shaft | 20mm | Seal | Mechanical Seal (DJ-MS-L002) |
Shaft | Stainless Steel | Weight | 4.3 Kg |
첨부파일
-
082 Drawing0.pdf (143.4K)
10회 다운로드 | DATE : 2021-02-02 18:12:08
