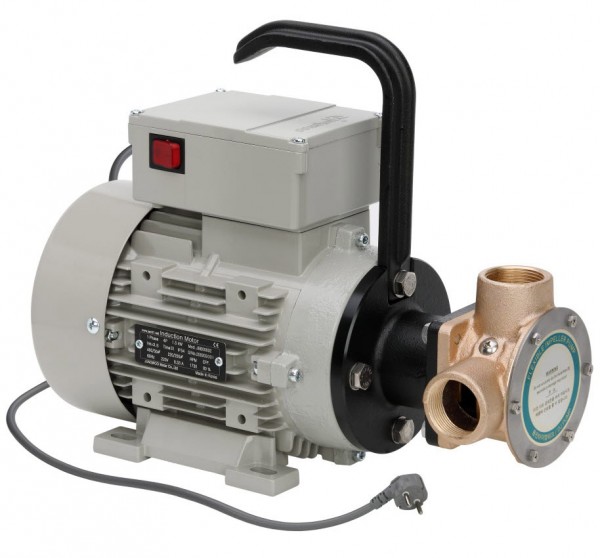

PORTABLE MOTOR PUMP
페이지 정보
![profile_image](http://djimtech.com/dj/img/no_profile.gif)
본문
Single Phase |
DJ-MP1925 |
DJ-MP1932 |
DJ-MP1940 |
|
PUMP |
Output |
25mm (PT 1") |
32mm (PT 1-1/4") |
40mm (PT 1-1/2") |
Material |
Bronze |
|||
Total head |
36m |
38m |
42m |
|
Max Flow rate |
85 ℓ / min |
152 ℓ / min |
210 ℓ / min |
|
Impeller |
Neoprene (Sea water, normal liquid) Nitrile (Oil) |
|||
Motor |
Power |
4P / 1.5kw (2.0ps) |
||
Electric Power |
Single Phase 220V 60Hz (on/off switch button O) |
|||
RPM |
1730 RPM |
|||
Size LxWxH (mm) |
394x176x250 |
398x176x250 |
417x176x250 |
|
Weight |
23kg |
24kg |
25kg |
첨부파일
-
drawing0.pdf (254.7K)
14회 다운로드 | DATE : 2021-02-02 18:24:34
