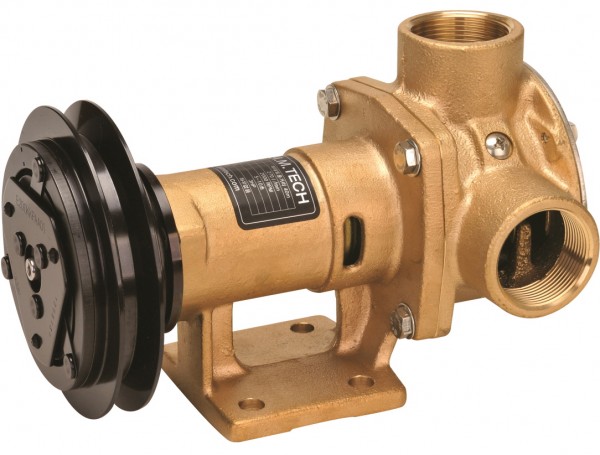

DJ-EMP2000
페이지 정보
본문
COMMENT
- Suitability for bliage under ship and deck cleaning and fighting the fire
- Easiness to operate the pump installing the switch inside of the ship and wheelhouse
- uses the electronic clutch pump at the voltage of from 12 to 24.
- Simplicity to install and operate because of the unnecessariness of depleting the air and filling out the water.
- Possibility of lashing and backlashing
- Can be used as multi-functional pump which can carry the high viscosity of fluid, solid body, and sludge/slurry
- Selective installation of the rubber impellers between CR rubber which has strong durability and intensity and NBR rubber which has strong anti-oil nature.
Usage of the flexible electronic clutch pump : For ship ( Bilge under the ship , deck cleaning, Fighting the fire)
DETAIL INFO
| Body / Housing | Electro-Magnetic Clutch | Ports | 1-1/2”(40mm) PIPE |
| Driven Type | Electro-Magnetic Clutch | Impeller No. |
003-0901 |
| Pulley | 5” Single B Groove | Seal |
Mechanical Seal(DJ-MS025) |
| Clutch | 24V | Weight | 8.6 Kg |
| Shaft | Stainless Steel | Application | JAPAN / KOSHIN MFC-40S |
